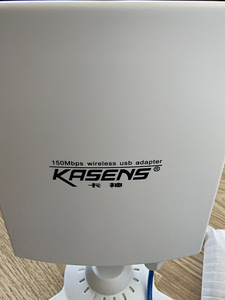

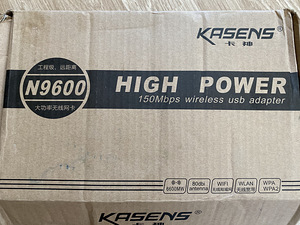

UUS adapter KASENS N9600 150Mbps High Power

Specifications:

Standard

802.11b/g/n

Interface

USB rev.2.0 A-Type

Frequency Band

2.400GHz~2.484GHz

Radio Type

IEE 802.11n:BPSK, QPSK,16QAM,64QAM with OFDM

IEE 802.11b:11, 5.5, 2 and 1 Mbps with auto-rate fall back

IEE 802.11g:54,48,36,24,18,12,9&6Mbps

Access Protocol

CSMA/CA

Number of Operation Channel

2.412~2.462GHz (Canada, FCC)/11 Channels

2.412~2.484GHz (Japan, TELEC)/14 Channels

2.412~2.472GHz (Euro, ETSI)/13 Channels

Security

64/128bit WEP

WPA(TKIP with IEEE 802.1x)

WPA2(AES with IEEE 802.1x)

RF Output Power(typical)

IEE 802.11n:up to 21±1dbm

IEE 802.11b:up to 24±1dbm

IEE 802.11g:up to 30±1dbm

Sensitivity

-73dbm@54 Mbps

-85dbm@11 Mbps

Power Consumption

Transmission/Reception

Antenna

80dbi Panel Antenna(SMA connector)

Operation Temperature

-10Celsius Degree to 30Celsius Degree  ambient temperature

Storage Temperature

-30Celsius Degree to 80Celsius Degree  ambient temperature

Humidity

10%-90%(Non-condensing)

Driver Support

Windows 7, 98se, ME, 2000, XP 32/64, Vista 32/64, Linux and MAC OS X

Not working WIN10
