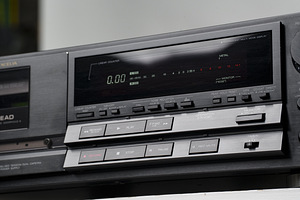

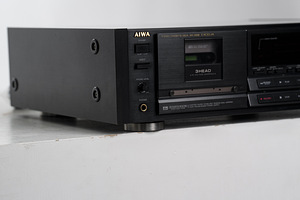

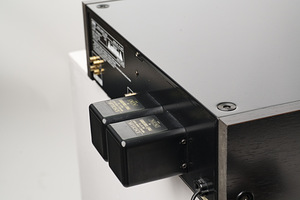

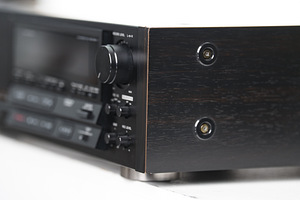

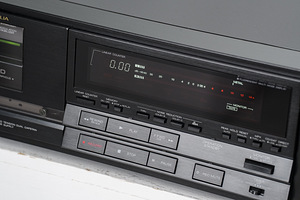

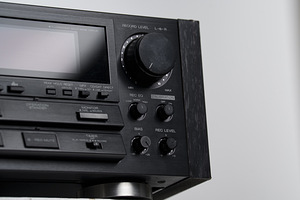

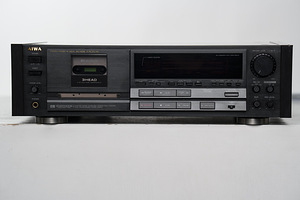

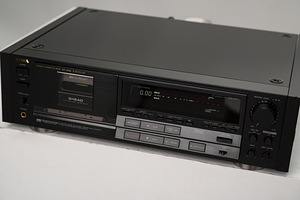

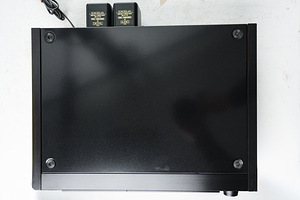

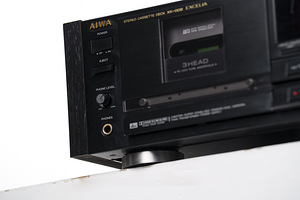

AIWA EXCELIA XK-009 (SERVICED)

Description

The XK-009 opens up a new realm in cassette audio, with several important advances to push sound performance to the highest level possible.

Aiwa's original AMTS (anti-modulation tape stabiliser) cuts resonance for clearer sound, while the Bias Shield Head Block works during recording to shield the playback head for the detrimental effects of recording flux.

Amorphous heads are used for both recording and playback, with internal coils wound with PC-OCC copper wire for optimum conductivity.

This translates to greater audio accuracy, particularly in music with delicate passages and subtle transients.

Specifications

Type: 3-head, single compact cassette deck

Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record, 1 x playback, 1 x erase
Motor: 1 x system servo, 2 x DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C, DBX
Headroom Extension: HX Pro
Frequency Response: 20Hz to 22kHz (Metal tape)
Signal to Noise Ratio: 95dB (DBX)
Wow and Flutter: 0.018%
Input: 50mV (line)
Output: 0.53V (line)
AC Power: 220V
Dimensions: 469 x 136 x 432.7mm
Weight: 10.2kg
