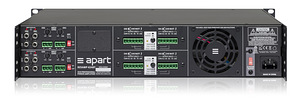

APART REVAMP4240T

The Apart REVAMP4240T is a four channel digital power amplifier offering 4 x 240 watts on 100 volt line. It can also be used on a low impedance sound system offering 4 x 240 watts at 4 ohms or 4 x 120 watts on 8 ohms.

The output is also bridgeable to 2 x 480 watts on either 100 volt or 8 ohms.

Bespoke output limiter keeps the output power under control and an intelligent variable speed fan keeps the amp cool.

Power amp topology: Class-D

Output channels: 4

Output power RMS 4 ohms: 4 x 240 watts

Output power RMS bridged 8 ohms: 2 x 480 watts

Sine wave capability: 500ms at full RMS output power

Minimum load impedance: 4 ohms

Minimum load impedance bridged: 8 ohms

Output power RMS 100 volts: 4 x 240 watts

Output power RMS 100 volts bridged: 2 x 480 watts

Line input(s) balanced: 4 Euroblock

Line input(s) unbalanced: 4 RCA + 4 pass through RCA

Input sensitivity: 0 dBV / 1 Vrms

Output connections: Euroblock

S/N ratio: > 101 dB @ Full power, A-weighted

Channel separation: > 68 dB @ Full power, 1kHz

cooling system: Convectional and temperature controlled fan
