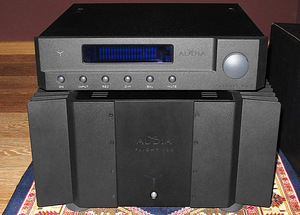

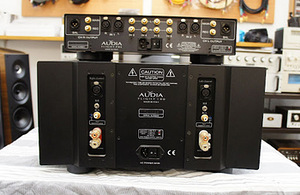

Audia Flight Pre & Audia Flight 100 Pure Class A

Audia Flight Pre:

Technical Data

Input: 2 balanced XLR / 4 unbalanced RCA

Gain range: -90 dB / +10 dB

Gain resolution: 0.5 dB

Frequency response (1W rms -3dB): 3 Hz ÷ 1 MHz

Slew-Rate (on 8 ohm): > 200 V/μS

THD: < 0,05 %

S/N Ratio: 95 dB

Input impedance: 680pF Unbalanced 51 Kohm

Balanced: 30 Kohm

Output impedance: Unbalanced 12 ohm

Balanced: 50 ohm

Main voltage AC (50/60Hz): 100, 110-115, 220-230,240 V

Power consumption: 60 W

Dimensions (W x H x D): 420 x 113 x 380 mm

Weigth: 12 Kg

Shipping dimensions and weigth 570x270x540mm (wxhxd) - 15 Kg

Audia Flight 100:

Audia Flight 100 MK4 – A Pure Class A Power Amplifier
Technical Data
Output power W rms 8/4/2 ohm 100/200/400
Gain 26 dB
Input sensitivity 1.41 Vrms
Frequency response (1W rms -3dB) 0,3 Hz ÷ 1 MHz
Slew-Rate (on 8 ohm) > 200 V/μS
THD < 0,05 %
S/N Ratio 108 dB
Input impedance Unbalanced 24, 28, 42, 57 Kohm
Balanced 23 Kohm
Damping factor (on 8 ohm) 85
Main voltage AC (50-60Hz) 100, 110-115, 220-230, 240 V
Power consumption 500 W, 1400 W MAX
Dimensions and weigth 470x245x540mm (wxhxd) - 52 Kg
Shipping dimensions and weigth 540x400x620mm (wxhxd) - 60 Kg
