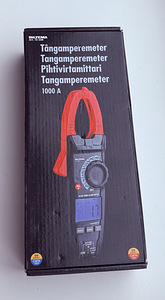

Biltema Clamp Meter, 1000A

Biltema Clamp Meter, 1000A

Tootekood : 15-339

Original 100% Original 100% Original 100%

Uus karbis , avamata pakendis , garanteerida, et kõik töötab , vaata fotot!

Ei tingi! hind lõplik!

ainult Tallinnas käest kätte!

kui kuulutus on - kaup on!

******************************

Clamp meter with large backlit display and torch. For measuring current, voltage, resistance, capacitance, frequency, duty cycle and temperature in °C and °F, and with diode and connection testing and variable-frequency drive (VFD). Measurement is carried out with accurate output value, True RMS.

The clamp meter has selectable functions for automatic measurement range detection, easy reset for DC measurement, current value hold function, saved value (relative value) comparison, non-contact voltage detector (NCV) with LED indicator, and battery status and battery saving function that turns off the device after 15 minutes.

• CAT III 1000 V: For measurement in distribution networks and normal industrial environments provided that the voltage rating is high enough for the measuring task
• CAT IV 600 V: For measurement in heavy-duty distribution systems before input fuses/electricity meters and similar applications

Accessories:

1 x fabric bag

1 x temperature probe

1 set of test cables

Accessories:

1 x fabric bag

1 x temperature probe

1 set of test cables

Technical specifications

Clamp opening 35 mm

Measurement frequency 2 Hz (nominal)

Overvoltage category CAT IV 600 V, CAT III 1000V

Operating temperature 5–40 °C (Max. 80% RF @ 31 °C, Max 50% RF @ 40 °C)

Storage temperature -20–60 °C (<80% RF)

Temperature sensor Thermocouple, type K

Measuring range -20–1000 °C (temperature)

Battery

Battery type AAA-LR03 (not included)

Battery voltage 3 x 1,5 V DC

Dimensions

Length 220 mm

Width 80 mm

Height 39 mm

Weight 305 g

Electrical data

Continuity ≤50 Ω (<0.5 mA)

Diode test 0,3 mA (3.2 V DC open circuit)

Current strength 0-400 to 0-1000 A (AC/DC max.)

Voltage range 0-4 to 0-1000 V (AC)

Voltage range 0-400 mV to 0-1000 V (DC)

Resistance 0-400 Ω to 0-40 MΩ

Capacitance 0-40 nF to 0-100 mF

Frequency 9,999 Hz–99,99 kHz

Duty cycle 10–90 %
