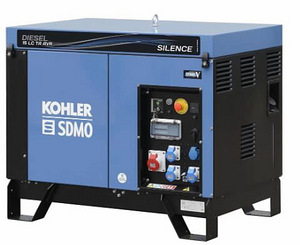

Diiselgeneraator 15 LC TA SILENCE AVR C5, SDMO

Müüa uus diiselgeneraator, sesinud garaazhis, käivitatud hooldusintervallide jaoks ainult.

GENERAL SPECIFICATIONS
RangeDIESEL
Frequency (Hz)50 Hz
Max power LTP (kW)9,5
Max power LTP (kVA)11,90
Nominal voltage (V)400
Number of PhaseThree phase
FuelDiesel
Tank (L)27
75% cons. (l/h)2,6
75% Autonomy (h)10,4
Sound power level guaranteed LwA dB(A)94
Acoustic pressure level @1m in dB(A)78
Acoustic pressure level @7m in dB(A)65

ENGINE SPECIFICATIONS
Engine brandKOHLER DIESEL
Engine ref.KDW702
DistributionDiesel O.H.V.
StartElectrical
Low Oil pressure shutdownOui
Displacement (cm3)686
Oil capacity (L)1.60

ALTERNATOR SPECIFICATIONS
TechnologyCollar and brush
AVR RegulationYes
Indication of protectionIP 23
Insulation classH

PLUGS AND PANEL DESCRIPTIVE
1 230V 10/16A socket - circuit breaker + 3 230V 16A socket - circuit breaker + 1 400V 16A socket - circuit breaker + emergency stop button + hour meter + indicator + APM202

DIMENSIONS AND WEIGHT
Lenght (cm)121,1 (122,2)
Width (cm)79 (80,4)
Height (cm)105,6 (105,6)
Dry Weight (kg)315
