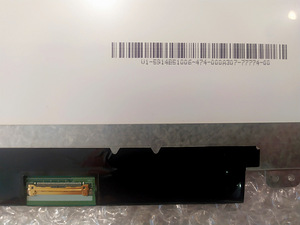

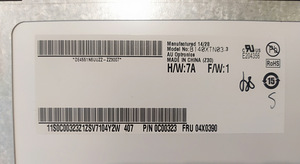

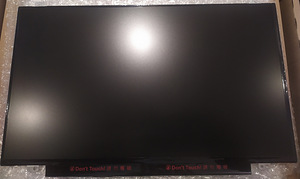

Ekraan LCD Panel AUO B140XTN03.3 HW7A FRU 04X0390

Müüa kasutatud Ekraan LCD Panel AUO B140XTN03.3 HW7A, FRU 04X0390. 1366×768. Matt. 30 Pin. Heas korras.

Panel Brand
AUO
Panel Model
B140XTN03.3

Panel Size
14.0"
Panel Type
a-Si TFT-LCD, LCM

Resolution
1366(RGB)×768, WXGA, 112PPI
Pixel Format
RGB Vertical Stripe

Display Area
309.399(W)×173.952(H) mm
Bezel Opening
-

Outline Size
320.4(W)×205.1(H) ×3.6(D) mm
Surface
Antiglare, Hard coating (3H)

Brightness
200 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)

Viewing Angle
45/45/15/35 (Typ.)(CR≥10) [Left / Right / Up / Down]
Display Mode
TN, Normally White, Transmissive

Best View on
6 o'clock
Response Time
8 (Typ.)(Tr+Td)

Display Colors
262K 45% NTSC
Lamp Type
WLED , 12K hours , With LED Driver

Frequency
60Hz [[Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit]
Touch Screen
Without

Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Application
[Laptop]

Signal Interface

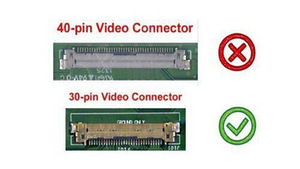

eDP (1 Lane) , 30 pins Connector

Input Voltage
3.3V (Typ.)

Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
