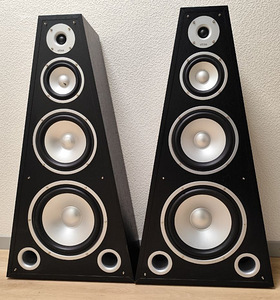

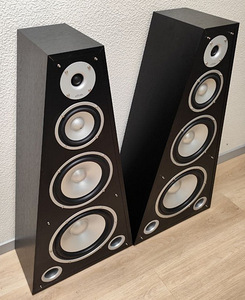

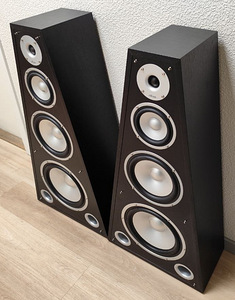

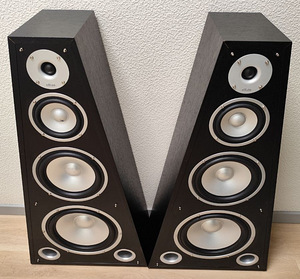

Eltax Concept 800 kõlarid

Eltax Concept 800 põrandakõlarid.

Kõlarid toimivad korrektselt.

Design & General

• Configuration: 4-way passive, bass-reflex (vented) floor-standing speaker
• Recommended Usage: Hi-Fi stereo or surround sound applications with binding post connections

Power Ratings

• Long-term (continuous) maximum power: ~200 W
• Short-term (peak) maximum power: ~400 W (some sources list up to 500 W)

Frequency Response & Sensitivity

• Frequency range (± 4 dB): 35 Hz – 20 kHz (sometimes quoted as 40 Hz – 20 kHz)
• Sensitivity: 93 dB @ 2.83 V / 1 m

Impedance

• Nominal impedance: 4–8 Ω
• Minimum impedance: around 4 Ω

Driver Layout

• Tweeter: 25 mm soft-dome
• Midrange: 130 mm driver
• Woofers/Bass drivers: one 200 mm plus one 250 mm driver
• Total driver complement: Tweeter + Midrange + dual Woofers (4-way crossover)

Physical Dimensions

• Height × Width × Depth: 1,030 × 320 × 300 mm (≈ 40.6″ × 12.6″ × 11.8″)

Connections & Construction

• Speaker terminals: Binding posts (secure screw-type connections)
• Cabinet finish options: Beech or black wood veneer (Danish design roots)
