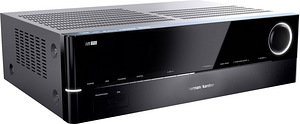

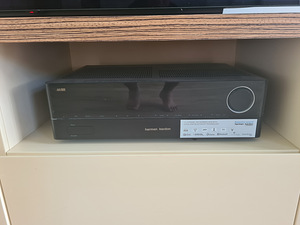

Harmon/kardon AVR-171 resiiver

Väga heas korras Harmon/kardon AVR-171 Audio Video Receiver.

Lisaks pakkuda komplekti ka Yamaha NS-777 kõlarid, ka väga heas korras kulumisjälgedeta(kõrgläikega musta värvi,)

What’s in the box

• 1 Harman Kardon® AVR 171 A/V receiver
• 1 programmable remote control
• 1 EzSet/EQ III microphone with 6.7m (22′) cable
• 1 AM loop antenna with 0.6m (2′) cable
• 1 FM antenna with 1.8m (6′) cable
• 2 AAA batteries
• 1 1.8m (6′) AC power cord
• Quick-start guide
• Warranty card
• Safety sheet

Harman Kardon AVR 171
Audio Section

• Stereo power: 100 watts per channel, two channels driven @
6/8 ohms, 20Hz – 20kHz, <0.07% THD
• Multichannel power: 100 watts per channel, two channels
driven @ 6/8 ohms, 20Hz – 20kHz, <0.07% THD
• Input sensitivity/impedance: 250mV/27k ohms
• Signal-to-noise ratio (IHF-A): 100dB
• Surround system adjacent channel separation: TBD
• Dolby Pro Logic®/DPLII: 40dB
• Dolby Digital: 55dB
• DTS®: 55dB
• Frequency response (@ 1W): 10Hz – 130kHz (+0dB/–3dB)
• High instantaneous-current capability (HCC): ±42 amps
• Transient intermodulation distortion (TIM): Unmeasurable
• Slew rate: 40V/sec

FM Tuner Section

• Frequency range: 87.5MHz – 108.0MHz
• Usable sensitivity IHF: 1.3µV/13.2dBf
• Signal-to-noise ratio (mono/stereo): 70dB/68dB
• Distortion (mono/stereo): 0.2%/0.3%
• Stereo separation: 40dB @ 1kHz
• Selectivity (±400kHz): 70dB
• Image rejection: 80dB
• IF rejection: 80dB

AM Tuner Section

• Frequency range: 522kHz – 1,620kHz
• Signal-to-noise ratio: 38dB
• Usable sensitivity (loop): 500µV
• Distortion (1kHz, 50% mod): 1.0%
• Selectivity (±10kHz): 30dB

​Video Section

• Television format: PAL
• Input level/impedance: 1Vp-p/75 ohms
• Output level/impedance: 1Vp-p/75 ohms
• Video frequency response (composite video): 10Hz – 8MHz
(–3dB)
• HDMI: Supports up to 4K x 2K

General Specifications

• Power requirement: 220V – 240V AC / 50Hz – 60Hz
• Power consumption: <0.5W (standby); 510W maximum
• Dimensions (H x W x D): 121mm x 440mm x 300mm
(4-3/4″ x 17-5/16″ x 11-13/16″)
• Weight: 5.1kg (11 lb)
