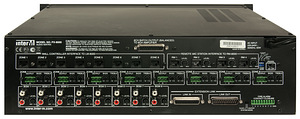

Inter M_PX_8000 _8_CHANEL MIXER_AMPLIFIER

UUS

Specifications

Audio Output: 0dB(Balanced)

Audio Input:
Paging & RM MIC & LM MIC: -50dB(Balanced)
BGM(Main & Local): -10dB(Balanced)

Tone Control (100Hz & 10kHz):
Paging MIC: ±10dB
Audio Output: ±12dB

Frequency Response:
BGM (60Hz ~ 15kHz): ±3dB
MIC (100Hz ~ 10kHz): ±3dB

S/N:
BGM: Better than 75dB
MIC: Better than 65dB

T.H.D:
BGM: Less than 0.05%
MIC: Less than 0.05%

Priority Control : Paging MIC > DRP > RM1 > RM2> RM3> RM4 > LM-8000 > Main BGM

Phantom Power: DC 24V

Serial Interface Communication Speed: 9600bps

(RS-422) Communication Distance: Maximum 300m (UTP CAT5)

Operation Temperature: -10˚C ~ +40˚C

Power Source: 100–120VAC or 220–240VAC; 50/60Hz
(Supplied AC mains transformer depends on country requirements)

Power Consumption: 60W

Weight (SET): 7.5kg/16lb

Dimensions (SET): 482(W)x132(H)x380(D)mm / 19(W)x5.2(H)x15(D)in
