Kassettdekk Denon DR-M22 Cassette deck

Lindistamise veaga kassettdekk Denon DR-M22 (heli kassetile ei salvesta, jääb vaid sahin).

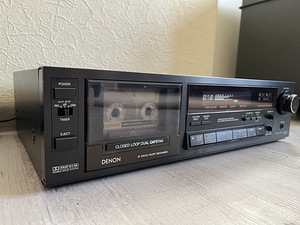

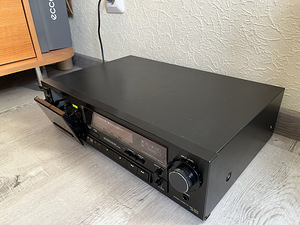

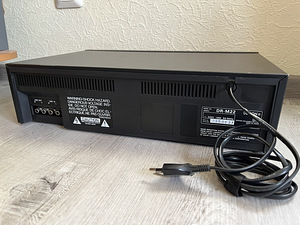

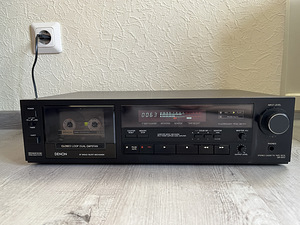

Muus osas on töökorras: kassette maha mängib, kerib, välimus piltidel.

General

• Manufacturer: Denon
• Model: DR-M 22
• Type: Stereo cassette deck
• Years of manufacture: 1984 - 1987
• Made in: Japan
• Color: Black
• Remote control: No

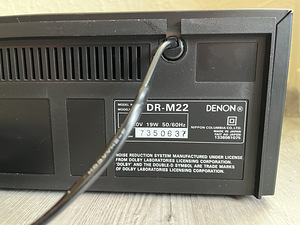

• Power consumption: 19 W
• Dimensions: 434 x 115 x 286 mm (WxHxD)
• Weight: 5.6 kg
• Original price: 900 EUR (RRP)

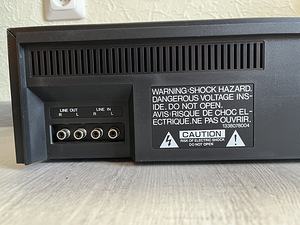

Connections

• Number of inputs: 1

Line: 77,5 mV / 50 kOhm

• Number of outputs: 2
  • Line: 775 mV / 47 kOhm
  • Headphones: 1.2 mW

Technical Data

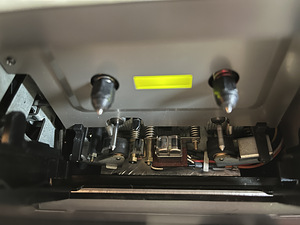

• Audio heads: 3
• motors: 3 - two for the drive, one small servo motor as auxiliary motor
• Synchronization fluctuations: 0,045% WRMS
• Tape types: Normal, Chrome, Metal
• Frequency response:
  • Metal: 30 - 19,000 Hz
• Distortion Ratio:
• Signal-to-noise ratio: 73 dB
• Signal-to-noise ratio (1) at Dolby C: Chrome: 75.5 dB, Metal: 77.5 dB
• Treble dynamic range (1) (10 kHz): chrome: 67.5 dB, metal: 75 dB.
• Auto Reverse: No
• Title search: Yes
• Dolby: B, C

(1) Data according to Stereoplay 6/85, p.42

Special Features

• Split Power Supplied Audio Amplifier
• Computer-controlled, low-noise servo motor technology
• Rear band control - monitor circuit
• Bias fine adjustment (recording-premagnetization adjustment)
• non-slip winding drive
• sensor keys
• Timer (play / record)
• Automatic tape type selection
• Pre-magnetization controller (BIAS tuning)

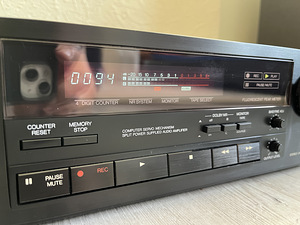

• 4-digit digital tape counter

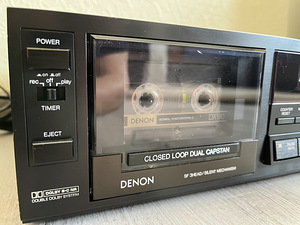

• Illuminated cassette compartment

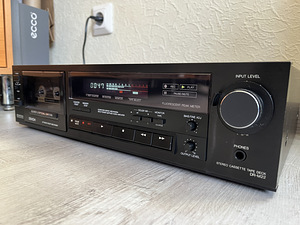

Output level control, which also controls the line out and is also an adjustable headphone output

(common on Denon DR-M units)
