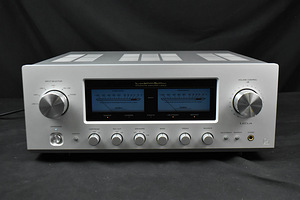

Luxman L-505ux

Continuous Outputs 100W+100W (8Ω), 150W+150W (4Ω)

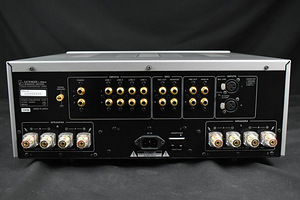

Input line x 4, phono x 1 (MM/MC) balance: line x 1, recording input/output x 1, separate output x 1

Loudspeaker Output A, B System (A+B output)

Amplifying Circuit Output ODNF2.3, bipolar, parallel, push-pull

Input Sensitivity / Impedance Phono (MM): 2.5mV / 47KΩ, PHONO (MC): 0.3mV / 100Ω, LINE: 180mV / 47KΩ

Harmonic Distortion 0.005% or less (1KHz/8Ω), 0.04% or less (20Hz~20KHz/8Ω)

Frequency response 20Hz~100KHz (+0, -3.0dB)

Signal-to-Noise LINE: 105dB

Power Consumption 270W, 85W (no signal), 0.4W (idle)

Dimensions (W x H x D) 440 ×178 ×454 (mm)

Net weight 22Kg
