Monitor Audio Bronze BX - 6 tk kompl ( Walnut)

Monitor Audio Bronze color Walnut (Pähkel) - 6 tk. kompl

Monitor Audio BX6 - 2tk

Monitor Audio MRW-10 -1 tk

Monitor Audio BX-FX - 2 tk

Monitor Audio BX-center - 1tk

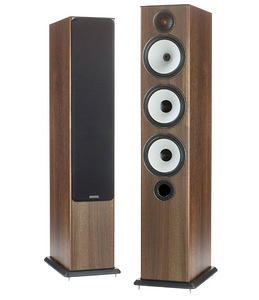

BX6

Frequency Response

34 Hz - 30 kHz

Sensitivity (1W@1M)

90 dB

Nominal Impedance

8 Ohms

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 - 150 W

Cabinet Support

Dual chamber bass reflex – Ported front and rear. HiVe II port technology

Drive Unit Complement

2 x 165 mm (6 1/2") C-CAM bass drivers

1 x 165 mm (6 1/2") C-CAM bass mid-range driver

1 x 25 mm (1") C-CAM Gold Dome tweeter

Crossover Frequency

LF: -6 dB @ 600 Hz

MF/HF: 3.4 kHz

External Dimensions (H x W x D)

985 x 186 x 315 mm (383/4 x 75/16 x 123/8 inches)

1003 x 235 x 350 mm - inc Plinth (391/2 x 91/4 x 133/4 inches)

Weight (each)

18.25 kg (40.2 lbs)

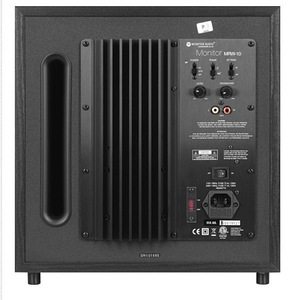

Monitor MRW-10

System Format

Rear ported bass reflex cabinet
Lower Frequency Limit

30 Hz (-6 dB)
Upper Frequency Limit

Variable 50 – 120 Hz @ 24 dB/Octave
Amplifier Output

100 W RMS
Amplifier Classification

Class D with Switch mode PSU
Bass EQ Profiles

Music / Movie / Impact
Phase Control

0 – 180°
Auto Sensing

>3.5 mV
Input Level Requirements

Standby after approximately 15 minutes if no signal sensed
Drive Unit Complement

1 x 10" MMP II long throw driver
Input Impedance

>20 K ohms
Mains Input Voltage

110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable
Fuse Specification

110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC
Connection

2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)
External Dimensions (Including Grille & Feet (H x W x D))

336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16")
Standby Power Consumption

<0.5 W standby
Weight

10.54 kg (23 lb 4 oz)

https://www.audiovideopood.ee/index.php?lang=ru&Monitor%20Audio%20Monitor%20MRW-10&&class=catalog&action=viewObject&cat_id=311&id=3808&page=0&scid=3

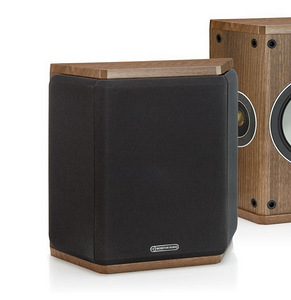

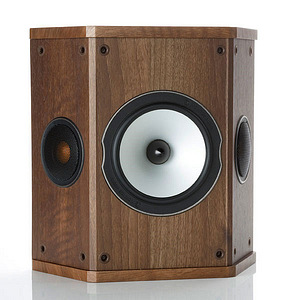

BX-FX

Frequency Response

65 Hz - 30 kHz

Sensitivity (1W@1M)

88 dB

Nominal Impedance

8 Ohms

Power Handling (RMS)

80 W

Recommended Amplifier Requirements

25 - 80 WCabinet Support

Sealed Cabinet

Drive Unit Complement

1 x 140 mm (5 1/2") C-CAM bass mid-range driver.

2 x 25 mm (1") C-CAM Gold Dome tweeter

Crossover Frequency

2.2 kHz

External Dimensions (H x W x D)

287 x 276 x 105 mm (115/16 x 107/8 x 41/8 inches)

(118 deep inc grille & bracket)

Weight (each)

3.62 kg (8 lbs)

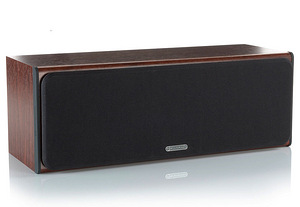

BX-center

Frequency Response

60 Hz - 30 kHz

Sensitivity (1W@1M)

90 dB

Nominal Impedance

8 Ohms

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

20 - 120 W

Cabinet Support

Sealed Cabinet

Drive Unit Complement

2 x 140 mm (5 1/2") C-CAM bass mid-range driver.

1 x 25 mm (1") Gold Dome tweeter

Crossover Frequency

3.2 kHz

External Dimensions (H x W x D)

166 x 460 x 165 mm

(69/16 x 181/8 x 61/2 inches)
