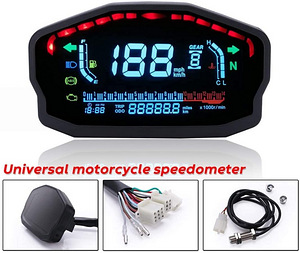

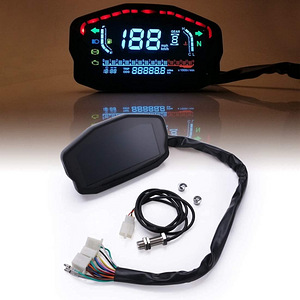

Mootoratta digitaalspidomeeter koos erinevate indikaatoriteg

Pakkuda uus ja kasutamata mootoratta digitaalne spidomeeter koos käiguvahetuse ja muude sisendinfoga.

Paigaldusjuhend puudub komplektist.

Parrema info leiab järgnevast kirjeldusest:

Motorcycle Speedometer Gauge Waterproof LCD LED Motorcycle Speedometer Digital Backlight for 1,2,4 Cylinder

Specifications for this item

Adjustable speed: the speed of the speedometer display is N. The product has a 1-6 speed display function and a 12V positive/negative control without the need to add a speedmeter.

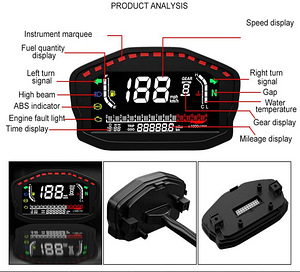

Comprehensive functions: product features include (tachometer, RPM, fuel indicator, water temperature display), clear LCD display, wide viewing angle, smooth vision and eye fatigue.

Measuring accuracy: the product can measure 166 Hz at 10 × 1000 rpm, LCD display: 36 Hz = 63 km/h, at a vehicle speed, the speed indicator starts to flow.

Backlight: LCD backlight: white, when the high beam is on, the brightness of the backlight is reduced from 100% to 38%. And the product is made of ABS material, which guarantees high hardness, rust protection and corrosion protection.

Left and right indicators: shows the position of the indicators of the vehicle. Normally, the indicator light will light up in the appropriate direction when the owner turns on the turn signal.

Brand NameMRCARTOOL

roduct parameters:
Supply voltage: DC 8-12V.

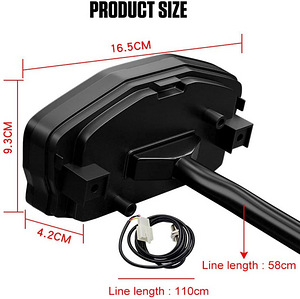

Product line length: 58 cm.
Speedometer: the tyre circumference is 1.85 metres, 4 magnets in a circle.
[LCD screen]: 6 points.
Sensor: sensor, 4 magnets.

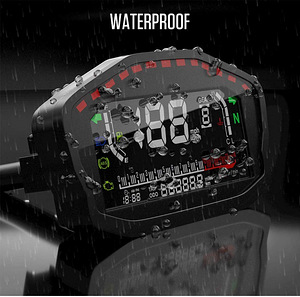

Waterproof: waterproof.
Speed display: km/h, mph.
Speed display range: 0-199 km/h (mile).
Internal display: <0.5 seconds.
Odometer display unit: 0.1 km.
Odometer display range: 200 miles
Odometer display: 0.1 km.
Speed range: 0 ~ 14000 rpm.

Button function:
Short press the button to switch between total (ODO) and sub-sum (TRIP).
B. In the overall interface (ODO), press the button for 8 seconds to switch between metric and imperial system. The default setting is metric and can be saved even if the power supply is fully switched off after switching.
C. In the intermediate sum interface (TRIP), press the button for 4 seconds to delete the sub-sum.
D. In the overall interface (ODO), press and hold the button for 4 seconds to release it. Enter the watch setting. The hour flashes, the second does not flash. Short press the button to increase 1 and press the button for 3 seconds to switch to flashing minute second, second. If the point does not flash, press the button for 3 seconds to save and stop, or save it automatically and stop it without operation for 10 seconds.
E. Oil alarm: when the oil alarm light is on, switch to the overall interface (ODO), press and hold the button for 8 seconds, the oil lamp is off and the next counting cycle begins.
