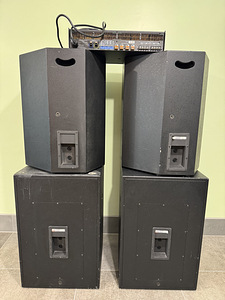

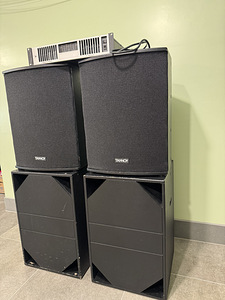

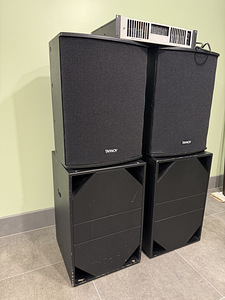

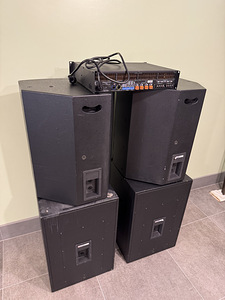

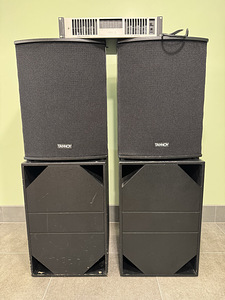

PA komplekt Tannoy + Lab Gruppen C48:4

PA komplekt Tannoy + Lab Gruppen C48:4

Arve võimalus - lisandub KM.

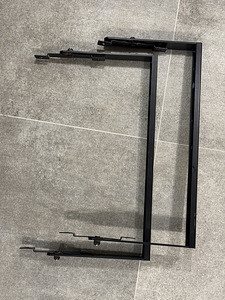

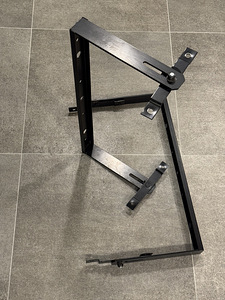

Kaasa ülemiste kõlarite riputusrauad.

Transport - kokkuleppel.

Tannoy V15
System Type Full Range – Vented
Frequency Response (-3dB) (1) 60Hz – 23kHz
Full Range Mode
Frequency Range (-10dB) (1) 47Hz – 26kHz
Full Range Mode
Frequency Response (-3dB) (1) 100Hz – 23kHz
High Pass Mode
Frequency Range (-10dB) (1) 80Hz – 26kHz
High Pass Mode
Rated Maximum SPL (2) Average: 126dB
Peak: 132dB

Dispersion (-6dB) 75 degrees conical
Driver Complement 1 x 380mm (15.00”) PowerDual™
Crossover Passive 1.4kHz
Directivity Factor (Q) 7.8 averaged 1kHz to 10kHz
Directivity Index (DI) 8.9 averaged 1kHz to 10kHz
Distortion 10% Full Power (17.9V)
2nd Harmonic
250Hz: 1.00%
1kHz: 1.40%
10kHz: 3.98%
3rd Harmonic
250Hz: 0.50%
1kHz: 1.00%
10kHz: 1.78%

1% Full Power (5.7V)
2nd Harmonic
250Hz: 0.32%
1kHz: 0.45%
10kHz: 3.16%
3rd Harmonic
250Hz: 0.45%
1kHz: 0.79%
10kHz: 0.31%
Construction
Enclosure 62 litre vented and internally braced 15mm (0.62”) birch plywood enclosure with 15mm (0.62”) MDF front baffle.
Finish Textured black
Powder coated steel grille, with reticulated foam behind
Connectors 2 x Speakon NL4MPR IN/OUT
Fittings 8 x M10 flying inserts, 8 x M10 yoke bracket inserts
3 x recessed carrying handles (2 side & 1 rear)
Blanking plate for optional VTH pole mount
Dimensions 590 x 450 x 420mm (HxWxD)
Weight 35kg

Tannoy VS-15BP bass
System Type Subwoofer-Bandpass
Frequency Response (-3dB) (1) 47Hz – 160Hz
Frequency Response (-10dB) (1) 37Hz – 200Hz
System Sensitivity (1W @1m) (2) 99dB (1W = 2.83V for 8 Ohms)
Power Handling Average(2): 300 watt
Programme: 600 watt
Peak (10ms): 1200 watt
Recommended Amplifier Power 300 – 600 Watt / 8 Ohms
Rated Maximum SPL (2) Average: 124dB
Peak: 130dB

Nominal Impedance 8 Ohms
Driver Complement 1 x 380mm (15.00”) High excursion bass driver
Recommended Crossover 80Hz – 160Hz, 24dB/octave
Recommended High-pass filter-30Hz, 24dB/octave
Distortion 10% Full Power (15.5V)
2nd Harmonic
40Hz: 0.65%
100kHz: 3.05%
3rd Harmonic
40Hz: 0.67%
100kHz: 0.70%

1% Full Power (4.9V)
2nd Harmonic
40Hz: 0.13%
100kHz: 0.76%
3rd Harmonic
40Hz: 0.30%
100kHz: 0.24%
Construction
Enclosure 100 litre Bandpass, 15mm (0.62”) birch plywood internally braced.
Finish Textured black
Connectors 2 x Speakon NL4MPR IN/OUT
Fittings 8 x M10 Flying inserts
2 x recessed carrying handles
Blanking plate for optional VTH pole mount
4 x Rubber Feet
Dimensions 665 x 440 x 440mm (HxWxD)
Weight 27 Kg

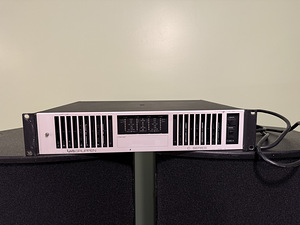

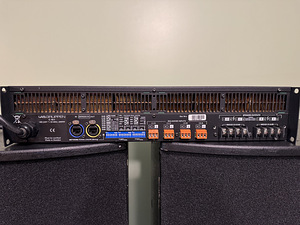

Võimendi Lab Gruppen C48:4

Specification

Number of amplifier channels : 4
Peak total output all channels driven : 4800 W
Peak output voltage per channel : 141 V
Max output current per channel : 17.5 Arms

Max output power (all channels driven):
16 ohms : 625 W
8 ohms : 1000 W
4 ohms : 1200 W
2 ohms : 600 W
Hi-Z per ch. (all ch.’s driven): 70 Vrms / 100 V peak : 1100 W

Max output power bridged:
16 ohms : 2000 W
8 ohms : 2400 W
4 ohm : 1200 W
2 ohm : Not recommended
Bridged per ch.: 140 Vrms / 200 V peak : 1800 W

Performance:

THD 20 Hz – 20 kHz at 1 W : <0.1%
THD at 1 kHz and 1 dB below clipping : <0.05% Signal to Noise Ratio : >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB
Frequency response (1 W into 8 ohms) + 0 / -3 dB : 6.8 Hz – 34 kHz
Input impedance : 20 kOhm
Common Mode Rejection (CMR) : >50 dB, 20 Hz – 20 kHz
Output impedance @ 100 Hz : 30 mOhm

Weight 12 Kg
