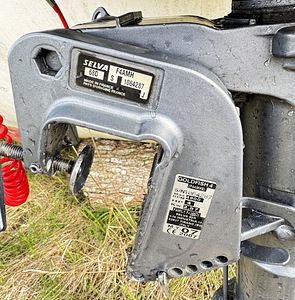

Päramootor Selva-Yamaha F4AMH / Goldfish 4 v.a. 2007

Väga vähe kasutatud v.a 2007 päramootor Selva-Yamaha F4AMH / Goldfish 4. Mootor on 4-taktiline, 4HP, lühikese jalaga.

Heas korras, regulaarselt hooldatud, olnud laeva varumootor, ei ole sõidu ajal parda taga hoitud - vaid kuivas kabiinis .

Yamahal on Selvas osalus ja Selva neljataktilised päramootorid on tegelikult Yamaha mudelid, millel on „Selva” mootorikate. Mootori osad on Yamaha koodidega vastavuses 1:1.

Lisaks kaasa ka välise kütusepaagi ühendusotsik ja juhendid ning varuosade kataloog.

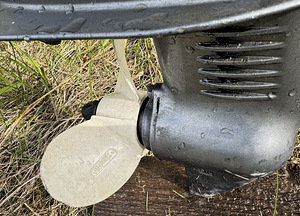

Ps! propelleri ühel labal on väike muljumine - näha fotol - transpordi kahjustus...

Andmed:

DIMENSION

• · Overall length(with tiller handle) mm (in) 717 (28.2)
• · Overall width mm (in) 361 (14.2)
• · Overall height (S) mm (in) 1029 (40.5)

WEIGHT

• · (With aluminum propeller)
• · (S) kg (lb) 22 (48.5)

PERFORMANCE

• · Maximum output (ISO) kW (hp) @ r/min 2.9 (4)/@ 4,500
• · Full throttle operation r/min 4,000~5,000
• · Maximum fuel consumption L (U,S, gal, Imp gal)/h 1.6 (0.42, 0.35)/@5,000@ r/min

POWER UNIT

• · Type 4 stroke, OHV
• · Number of cylinders 1
• · Displacement cm3 (cu. in) 112 (6.8)
• · Bore x stroke mm (in) 59.0x41.0 (2.32x1.61)
• · Compression ratio 8.4
• · Compression pressure kPa (kg/cm2, psi) 660 (6.6, 93.87)
• · Number of carburetors 1
• · Control system Tiller control
• · Starting system Recoil starter
• · Ignition control system T.C.I. (Transistor-Controlled Ignition)
• · Starting enrichment Choke valve
• · Spark plug B6HS/BR6HS
• · Exhaust system Under water
• · Lubrication system Wet sump
• · Ignition timing Degree BTDC 28~32 (Fixed)

FUEL AND OIL

• · Fuel type Unleaded regular gasoline 91*RON
• · Fuel tank capacity (Built-in) L (U,S, gal, Imp gal) 1.1 (0.29, 0.24)
• · Engine oil 4-stroke engine oil
• · Engine oil grade API SE, SF, SE-SF, SE-SF-CC or SG-CD SAE 10W-30, 10W-40, 15W-40
• · Total quantity cm3 (US oz, imp oz) 500 (16.9, 17.6)
• · Gear oil Hypoid gear oil Gear oil grade SAE# 90
• · Total quantity cm3 (US oz, imp oz) 100 (3.4, 3.5)

BRACKET

• · Tilt angle Degree 4, 8, 12, 16, 20
• · Tilt-up angle Degree 76
• · Steering angle Degree 360
• · Sallow water cruising angle Degree 30, 42, 54

DRIVE UNIT

• · Gear positions F-N-R (Forward-Neutral-Reverse)
• · Gear ratio 2.08 (27:13)
• · Gear type Straight bevel gear
• · Propeller direction Clockwise
• · Propeller drive system Spline
• · Propeller series mark BA
