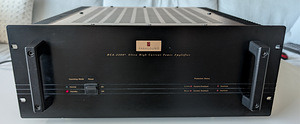

Parasound HCA-2200 II

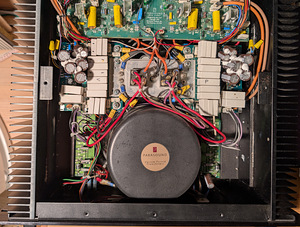

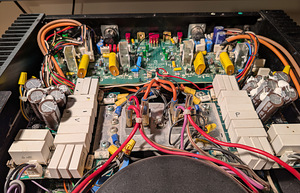

Legendaarse John Curli 1995 aastal valmistatud ja professionaalselt recapitud lõppvõimendi.

Töötab ideaalselt, korpuse maksimaalne temperatuur 36 kraadi, voolutarve normaalsel kuulamisel 100 W ümber.

SPECS:

1. Power Output, 20 Hz to 20 kHz: Stereo, 220 watts/channel into 8 ohms, 385 watts/channel into 4 or 2 ohms; mono, 750 watts into 8 ohms, 1,000 watts into 4 ohms.
2. Current Capacity: Continuous, 50 amperes; peak, 90 amperes.
3. Dynamic Headroom: Greater than 1.5 dB.
4. THD: At full power, less than 0.05%; at typical power levels, less than 0.009%.
5. IM Distortion: Less than 0.03%.
6. Transient Intermodulation Distortion: Unmeasurable.
7. Frequency Response: 2 Hz to 95 kHz, +0, —1.5 dB.
8. Slew Rate: Greater than 135 V/uS.
9. S/N Ratio: Greater than 114 dB A weighted with input shorted
10. Channel Separation: Greater than 84 dB at 1 kHz and greater than 74 dB at 20 kHz.
11. Input Impedance Unbalanced 100 kilohms balanced 200 kilohms
12. AC Power Requirement: 1,000 watts
13. Damping Factor: Greater than 1,000 at 20 Hz.
14. Dimensions: 19 in. W x 7 in. H x 15 in. D (48.3 cm x 17.8 cm x 38 1 cm)
15. Weight: 60 lbs. (27.2 kg).
