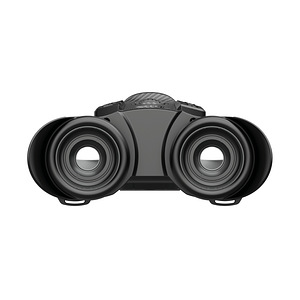

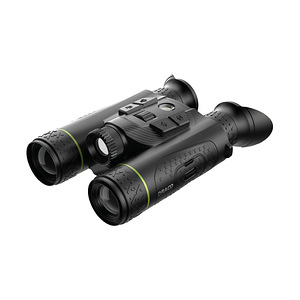

PIXFRA Draco PFI- D225-4K 850nm Multispektraalne termopildi

Thermal parameters
Detector type: Vanadium oxide uncooled focal plane detector
Effective pixels: 256 (H) × 192 (V)
Pixel pitch: 12 μm
Spectral range: 8 μm - 14 μm
Sensitivity (NETD): ≤18 mK @ f/ 1.0
Focal length: 25 mm
Aperture: F0.9
Focus Control: Manual
Field of View (FOV): H: 7.0°; V: 5.3° / H: 12.2 m; V: 9.3 m (@100 m)
Detection distance: 1,300 m
Minimum focus distance: 3 m
Digital magnification: 1×-8×
Base magnification: 4.3×

Digital parameters
Maximum resolution: 3840 (H) × 2160 (V) (4K)
Frame Rate: 50 Hz
Digital Optics Focal Length: 55 mm
Aperture: F2.0
Field of View: H: 8.0°; V: 4.5° / H: 14.0 m; V: 8.8 m (@100 m)
Focus Control: Manual
Minimum focus distance: 7 m
Base magnification: 5.5×
Digital magnification: 1×-8×
Display and image modes
Display: 0.49-inch OLED, 1920×1080

Colour palette:
White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Digital: Colour, Black & White, Green, Yellow, Auto
Image Modes: Thermal / Visible / PIP (Picture-in-Picture)
Interpupillary Distance Adjustment: 60-74 mm
Functions
Video Recording: Yes
Snapshot: Yes
Wi-Fi hotspot: Yes
GPS: Yes
Compass: Yes
Microphone: Yes
PIP (Picture in Picture): Yes
Hot Spot Track: Yes
FFC (Flat Field Correction): Auto / Semi-auto / Manual
DPC (Defective Pixel Correction): Yes
Standby Mode: Yes
Local Album: Yes
PIPS 3.0: Yes
Smart IR: Yes
IR and laser functions
IR illumination wavelength: 850 nm
IR Range: 400 m
Replaceable IR illuminator: Yes
Laser rangefinder: 1,000 m
Laser accuracy: ±1 m
Laser safety class: Class 1
Power and energy
Battery: Replaceable 18650 lithium battery
Runtime: ≥9 h @ 25°C (Wi-Fi off)
Power supply voltage: 5 VDC
Connector: USB Type-C
Environmental and mechanical characteristics
Operating temperature: -30 °C to +55 °C
Protection class: IP67
Dimensions (L×W×H): 195.0 × 130.6 × 61.7 mm
Weight: ≤0.61 kg
Package dimensions: 286.0 × 228.0 × 107.0 mm
