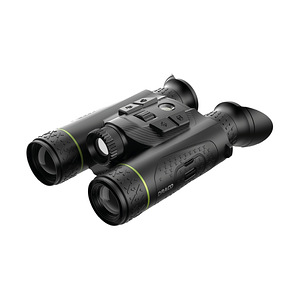

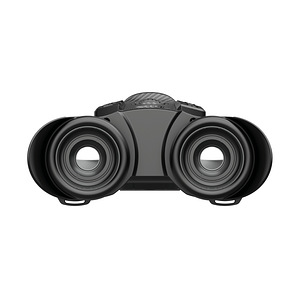

PIXFRA Draco PFI-D335-4K 850nm multispektraalne termopildi b

Thermal parameters
Detector type: Vanadium oxide uncooled focal plane detector
Effective pixels: 384 × 288
Pixel pitch: 12 μm
Spectral range: 8-14 μm
Sensitivity (NETD): ≤15 mK @ f/ 1.0
Focal length: 35 mm
Aperture: F0.95
Focal Control: Manual
Field of View: H: 7.5°; V: 5.6° / H: 13.7 m; V: 10.3 m (@100 m)
Detection distance: 1,800 m
Minimum focus distance: 3 m
Digital magnification: 1×-8×
Base magnification: 3.8×

Digital parameters
Resolution: 3840 × 2160 (4K)
Frame Rate: 50 Hz
Focal length: 55 mm
Aperture: F2.0
Field of view: H: 8.0°; V: 4.5°
Minimum focal length: 7 m
Base magnification: 5.5×
Digital magnification: 1×-8×

Display and functions
Identical to PFI-D225-4K: OLED display, colour palettes, Thermal/ Visible/ PIP modes, Wi-Fi, GPS, PIPS 3.0, Smart IR, etc.

IR and laser functions
IR illumination wavelength: 850 nm
IR range: 400 m
Replaceable IR illuminator: Yes
Laser rangefinder: 1,000 m (±1 m)

Power and design
Power: 5 VDC, USB Type-C
Battery: 18650 (replaceable)
Operating Time: ≥8 h @ 25°C
Temperature range: -30 °C to +55 °C
Protection: IP67
Dimensions: 195 × 130.6 × 61.7 mm
Weight: ≤0.62 kg
