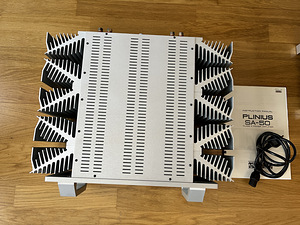

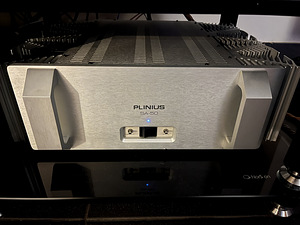

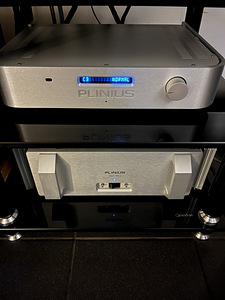

Plinius SA-50 mkIII klass-A lõppvõimendi

Hooldatud, tehniliselt väga heas korras

Vahetuse võimalus

SPECIFICATIONS:

50 WATTS PER CHANNEL INTO 8 OHMS / 100 WATTS PER CHANNEL INTO 4 OHMS FROM 20Hz TO 20kHz AT 0.09% TOTAL HARMONIC DISTORTION FROM 0.25WATTS TO RATED OUTPUT BOTH CHANNELS DRIVEN.

BRIDGED OUTPUT: 200 WATTS RMS 20Hz TO 20kHz INTO 8 OHMS. (MONO).

DYNAMIC HEADROOM: 1dB or greater at 8 Ohms with music. FREQUENCY RESPONSE: 20Hz to 20kHz ±0.1dB. 0dB at 0Hz and -1dB at 120kHz DISTORTION: Typically 0.01% THD and IMD at rated power. 0.1% THD and IM worst case prior to clipping. SATURATION: 55 Watts per channel or greater into 8 ohms. VOLTAGE SWING: 60 Volts peak to peak per channel. CURRENT OUTPUT: 30 Amps short duration continuous per channel. Fuse protected. RISE TIME: Typically 2 microseconds. PHASE RESPONSE: +0º at 20Hz -2º at 20kHz. HUM & NOISE: 100dB below rated output 20Hz to 20kHz, A weighted. INPUT SENSITIVITY: 1 Volt RMS for rated output at 1kHz. INPUT IMPEDANCE: 100,000 Ohms.
