Power Vision PowerEye

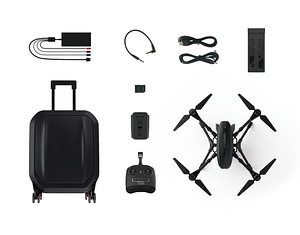

PowerEYE quadcopter with gimbal and PowerVision PEY10 video camera

Original 100%

Uus karbis , avamata pakendis , tehase garantii , vaata fotot!

Ei tingi! SMS -ile ma ei vasta!

ainult Tallinnas käest kätte!

kui kuulutus on - kaup on!

NB! KUI SOOVID OSTA HELISTA !

PowerEye Product Specifications

Professional Focus. See Beyond

AIRCRAFT

Weight 3950 g(Battery and propellers included)

Diagonal Size 650 mm

(Excluding

Propellers)

Physical Dimension340 mm x 285 mm x 296mm(Close)
513mm x 513 mm x 310mm (Flight)

Max Ascent Speed5 m/s (Professional mode)

Max Descent Speed2 m/s (Professional mode)

Hover Accuracy2 m/s (Professional mode)Vertical: +/- 0.1 m (When Vision Positioning is active, 0.2 – 4 m); +/- 1 m Horizontal: +/- 0.2 m (Surface with clear pattern and adequate lighting); +/- 1.5 m

Max Flight Speed18 m/s (Professional mode)

Operating Frequency2.4 GHz

Propellers Size15.5 inch

Power400 W (Hover) 800W (Max)

Max Flight TimeApprox. 29.5 min

Max Attitude35 degrees

Max Service Ceiling4,000 m

Above Sea Level

Operating-10 – 40°C

Temperature-10 – 40°C

GPS ModeGPS and BeiDou

Wind Resistance< =5 level

GIMBAL

Controllable Pitch0 – 90°

Range

Controllable Yaw-180° – +180°

Range

Stabilization3-axis (Pitch, roll, yaw)

Controllable 0.05°

Accuracy

STANDARD REMOTE CONTROLLER

Operating 0° – 40°C

Temperature

Battery5000 mAh LiPo 1S

Operating Voltage120 mA / 3.7 V

Operating Life 35 hours

Charging Time5 hours

OPTICAL POSITIONING

Velocity Range≤ 4 m/s (2 m above ground)

Altitude Range0.2 – 3.5 m (0.66 – 13.12 ft)

OperatingSurface with clear pattern and adequate

Environmentlighting (Lux > 15)

CHARGER

InputAC 90 – 264 V

Frequency47-63 Hz

Output Port 125.5V ± 0.1 V

Output Port 25 V ± 0.1 V

Operating-10° – 45°C (14° – 113°F)

Temperature

Rated Power138.5 W

PowerEye payload

outline size105*120*90mm

weight537g

power Supply12V/5V/3.3V

control signalUART/SPI/I2C/CAN

endurance time0.5kg 21.5m

bearing weight0-2kg

one click throwsupport

downward FPVsupport

forward FPVsupport

packaging methodIndependent packaging or containerizing

CAMERA

Sensor4/3" CMOS

LensPanasonic Lumix G 14mm F2.5 ASPH (Standard)
Olympus M.Zuiko 17mm f/1.8
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ(zoom)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8

ISO Range100 – 6,400 (Photo); 100 – 1,600 (Video)

Shutter Speed1/360s

Image Max Size4000X3000

Still Photography ModesSingle shot

Video Recording Modes4K 4096×2160
UHD 3840×2160

Supported SD CardMicro-SD card

TypesMax capacity: 64 GB. Class 10 or UHS-1
rating required

Max Video Bitrate60 Mbps

Supported File FormatsFAT32/exFAT
JPEG
MP4, MOV

Operating Temperature-10° – 40°C

BASE STATION

Operating Aircraft to Base Station: 2.400 – 2.483 GHz

FrequencyBase Station to other devices: 5.745 GHz – 5.825 GHz

Max Transmission5 km (3.1 miles) (Subject to regulation and local

Distanceoperating conditions).Distance will be shorter for CE.

Operating0° – 40°C (32° – 104°F)

Temperature

Battery2,300 mAh LiPo 1S

Transmitter Power20 dbm @ CE, 28 dbm @ FCC

Operating Voltage800 mA / 3.7 V

Operating Life1.5 hours

Charging Time3 hours

Latency300 ms

POWEREYE SMART BATTERY

Capacity9000mAH

Voltage22.2V

Battery TypeLiPo

Energy99.9WH X 2

Net Weight1230 g

Operating Temperature-10° – 40°C

Temperature

Charging Current≤2C

SDK

UAVopen aircraft attitude, GPS and other information（later）

cameraOpen camera configuration, photos, video, image acquisition and other functions

task moduleOpen mount interface, data transfer protocol, port configuration and other functions

controlOpen aircraft route control, takeoff control and other functions
