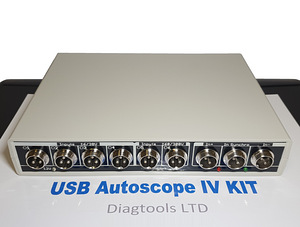

Professionaalne ostsilloskoop / motortester USB Autoscope IV

UUS - Professionaalne 8-kanaliga ostsilloskoop "USB Autoscope IV" täiskomplekt.

USB Autoscope IV on mõeldud diagnoosimiseks eri sõiduki elektriliste, elektrooniliste ja mehaaniliste süsteemide. Sealhulgas süüde, laadimise ja kütuse sisseehitatud abi ja kasutamise näidetena (numbrid, graafika jne).

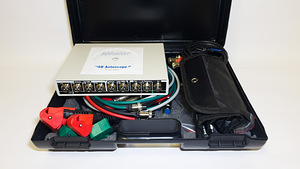

Täiskomplekt:

1. USB Autoscope IV, USB 2.0 A-B liidesekaabel, USB-kaablihoidik, toitekaabel, CD koos tarkvaraga
2. Dx (vaakummuundur -0,9 - +0,15 bar)
3. Sünkroonimine (sünkroonimismuundur)
4. DIS Cx 6 (mahtuvuslikud sondid)
5. Cx-M (universaalne mahtuvuslik sond)
6. Lx-M (universaalne induktiivne sond)
7. Px35 (silindrirõhuandur -0,9 - +35 bar)
8. Universaalne kaabel (2 tk)
9. Mõõteadapter (2 tk)
10. Seadme hoidik
11. PxLonger (adapter kõrgsurvemuunduri jaoks)
12. Sädemete vahe (kõrgepinge sädemete tester)
13. Nõelasond (4 tk)
14. Isolatsioonist läbistav sond (2 tk)
15. Väike alligaatori klamber (2 tk)
16. Sondi pikendus (4 tk)
17. Kõrgepinge pikenduskaabli adapter (1 tk)
18. Katsesond (2 tk)

Erihind:

- 1445,45 EUR ilma KMK
- 1749,00 EUR koos KMK

(Tavahind: 1849,- EUR)

Garantii ja tehnilist tuge.
Kõik juhendid ja katsemeetodite vene ja inglise keeles.

Kontaktandmed asuvad meie logol.

===

===

Professional PC based 8-channel oscilloscope with engine-test functions including FULL set - USB AUTOSCOPE IV.

Description:

Today, USB Autoscope IV is one of the best oscilloscopes on the market, which have wide built-in help, many scripts and examples of use (numbers, graphics etc.). The "USB Autoscope IV" is intended for diagnosis of various vehicle electrical, electronic, and mechanical systems. Including ignition, charging, and fuel injection systems.

Features:

Program performs signals monitoring, measurements and data recording simultaneously. Recorded data is uninterrupted fragment of digitized signal(s). These signals can be saved as binary or graphical file or printed wholly or by selected fragments. The program uses data compression on fly during loading and saving binary files, it helps to save disk space. Software is supplied with opportunities to add time and voltage markers, that describe current condition of signal(s) and level(s) in file is explored. Signals stored in binary files can be automatically analyzed by the help of VBScript or JScript files. Algorithms based on these files can mark waveforms, produce results in text and graphical views. In addition, scripts for analyzing digital signals for RS232, PS/2, I2C, SPI, USB (low / full speeds) specifications are included in software. If necessary, the user can create own script to analyze the signals for any other protocol.

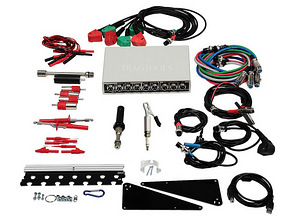

FULL Set:

1. USB Autoscope IV with USB 2.0 A/B interface cable, USB cable holder, power supply cable, CD with software
2. Dx (vacuum transducer -0.9 - +0.15 Bar)
3. Sync (synchronization transducer)
4. DIS Cx 6 (capacitive probes)
5. Cx-M (universal capacitive probe)
6. Lx-M (universal inductive probe)
7. Px35 (cylinder pressure transducer -0.9 - +35 Bar)
8. Universal cable (2 pcs.)
9. Measuring adapter (2 pcs.)
10. Device holder
11. PxLonger (adapter for high pressure transducer)
12. Spark Gap (high voltage spark gap tester)
13. Needle probe (4 pcs.)
14. Insulation piercing probe (2 pcs.)
15. Small alligator clip (2 pcs)
16 Probe extension (4 pcs.)
17. Adapter for high voltage extension cable (1 pc.)
18. Test probe (2 pcs.)

Special price:

- 1445,45 EUR without VAT
- 1749,00 EUR including VAT

(Standard price: 1849,- EUR)

Warranty and technical support.
All manuals and test methodic in Russian and English languages.

For more information, please contact us anytime, we'll be glad to assist you. Contact details are located on our logo.

Official distributor, Diagtools LTD.
