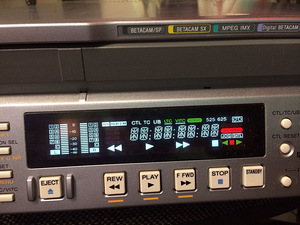

Sony J-3 SDI Digital Betacam player

Sony J-3 SDI Digital Betacam

Very Good condition, the only one owner, used only at home.

------------------------------------------

Model Description:
J3/902 Multi-Format Compact Player, Betacam, Betacam SP, Betacam SX, Digital Betacam, MPEG IMX, SDI,

Model Details

Compact Player/Viewer.Can be used as feeder for NL editing.Plays back Betacam, Betacam SP, Betacam SX,IMX and Digital Betacam.Comes equipped with SDI,

Composite, S-Video.XLR Audio, RS-422A, RS-232C, 525/625 versatility, jog/shuttle dial,.Handles both S and L-size cassettes.

-------------------------------------------

Features:

Compact design ideal for desk-top use

Multi-format playback capability; Digital Betacam, MPEG IMX, Betacam SX, Betacam SP and Betacam

Accommodates both small and large cassettes

Can be installed either horizontally or vertically

525/625-line switchable playback

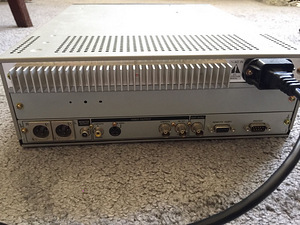

Equipped with SDI, analog composite video and S-Video outputs, RS-232C/422A control interfaces, two channels of audio monitor output and audio headphone output

Their compact design allows for desk top use. They operate equally well used horizontally or standing upright on either end using the supplied vertical stand

Allows for flexibility of small and large tape playback of compatible formats.

Equipped with the industry standard RS-422A Sony 9-pin remote control interface, this compact player can be used not only for viewing ahd logging but also for feeding source material to servers and nonlinear editors. Should not be used as editing players in conventional linear editing applications.

-----------------------------------------------------------------

Specifications:


Power Requirements : AC 100V to 240 V, 50/60 Hz

Power Consumption : 50 Watts

Operating Temperature : 5 to 40 Degree C 41 to 104 Degree F

Storage Temperature : -20 to 60 Degree C -4 to 140 Degree F

Relative Humidity : 25 to 80 %

Tape Speed - Digital Betacam : 96.7 mm/s

Tape Speed - MPEG IMX : 64.467 mm/s (525 mode), 53.776 mm/s (625 mode)

Tape Speed - Betacam SX : 59.515 mm/s (525 mode), 59.575 mm/s (625 mode)

Tape Speed - Betacam/Betacam SP : 118.6 mm/s (525 mode), 101.5 mm/s (625 mode)

Playback Time - Digital Betacam : Max. 124 min with BCT-D124L

Playback Time - MPEG IMX : Max. 184 (525 mode)/220 (625 mode) min with BCT-184MXL cassette

Playback Time - Betacam SX : Max. 194 minutes with BCT-194SXLA cassette

Playback Time - Betacam/Betacam SP : Max. 90 (525 mode)/105 (625 mode) min with BCT-90MLA cassette

Fast Forward/rewind Time - Digital Betacam : Approx. 5 minutes with BCT-D124L

Fast Forward/rewind Time - MPEG IMX : Approx. 5 minutes with BCT-184MXL cassette

Fast Forward/rewind Time - Betacam SX : Approx. 5 minutes with BCT-184SXLA cassette

Fast Forward/rewind Time - Betacam/Betacam SP : Approx. 5 minutes with BCT-90MLA cassette

Search Speed Time - Digital Betacam : +/- 20 times normal playback speed

Search Speed Time - MPEG IMX : +/- 32 times normal playback speed

Search Speed Time - Betacam SX : +/- 35 times normal playback speed

Search Speed Time - Betacam/Betacam SP : +/- 18 times normal playback speed

Servo Lock TIme : 0.5 or less second From standby on

Load/Unload Time : 6 or less second

Ext. sync Input Signal : BNC (x1), Frame lock

Analog Composite Output : BNC (x1), Pin Jack (x1), 1.0 Vp-p, 75 ohms

S-video Output : Mini DIN 4-pin (x1), Y: 1.0 Vp-p, C.0286 Vp-p burst, 75 ohms

Analog Component Output (with optional BKJ-1) : BNC (x3), Y: 1.0 Vp-p, R-Y/B-Y: 0.7 Vp-p, 75 ohms

SDI Output (with optional BKJ-2) : BNC (x1), SMPTE 259M, 270 Mb/s, 0.8 Vp-p, 75 ohms

Remote control - R9-422A : D-sub 9-pin (female) (x1), sony 9-pin remote Interface

Remote control - R9-432C : D-sub 9-pin (female) (x1)

Monitor Output L/R : Pin Jack (x1); -10 dBu at 47 kohms load, unbalanced, XLR (male x2); +4 bBm, 600 ohms load, low impedance, balanced

Headphone Output : JM-60 Stereo Phone Jack, - infi. to -12 dBu at 8 ohms load, unbalanced

Width : 12 1/8 inch 307 mm

Height : 4 inch 100 mm

Depth : 15 3/4 inch 397 mm

Weight : 15 lbs. 7 oz 7 kg
