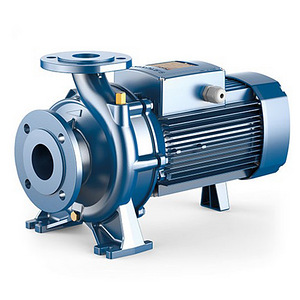

1Model: F100/160A (Made in Italy)
Pedrollo centrifugal pump with energy saving motor “IE3”.
Three phase, 415V.
Descriptions
Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.
The pumps must be installed in enclosed places, or at least protected against inclement weather.
Features
Liquid type: clean water
Uses: industrial
Applications: water supply systems, fire-fighting sets, air conditioning systems, washing systems, pressure systems, cooling systems, irrigation pumps
typology: surface
Family: standardized centrifugal pumps

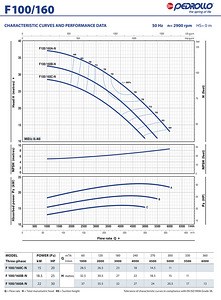

Performance Range
Flow rate up to 6000 l/min (360,0 m³/h)
Head up to 95 m
Applications Limit
Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature da -10 °C to +40 °C
Manometric suction lift up to 7 m
Max. pressure in pump body 10 bar (PN10)
Continuous service S1
Specifications
Size Discharge5″ x 4″
Power22000 W / Three phase
Flow Rate1000 ~ 5500 L/min
Head38 ~ 17.5 meters
Manometric Suction LiftMax. 7 meters
Liquid TemperatureMax. +90°C
Environment TemperatureMax. +40°C

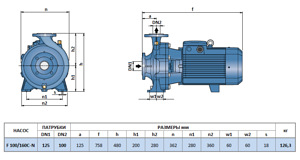

Dimensions (L x W x H)790mm x 480mm x 362mm
Weight152 kg
