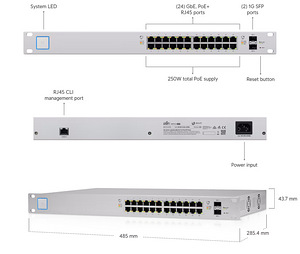

Ubiquiti Switch 24 PoE ( us-24-250w )

Ubiquiti Switch 24 PO ( us-24-250w )

Mechanical

Dimensions

485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7")

Weight

4.7 kg (10.4 lb)

Enclosure material

SGCC steel

Hardware

Management interface

Ethernet In-Band

Networking interface

(24) GbE RJ45 ports
(2) 1G SFP ports

PoE interface

(24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)

Total non-blocking throughput

26 Gbps

Switching capacity

52 Gbps

Forwarding rate

38.69 Mpps

Power method

Universal input, 100—240V AC, 50/60 Hz

Power supply

AC/DC, internal, 2500W

Supported voltage range

100—240V AC

Max. power consumption

30W (Excluding PoE output)

Total available PoE

250W

Max. PoE wattage per port by PSE

24V Passive PoE: 17W
PoE+: 34W

Voltage range PoE mode

24V Passive PoE: 20–27V
PoE+: 50—57V

ESD/EMP protection

Air/contact: ± 24kV

Button

Factory reset

Shock and vibration

ETSI300-019-1.4 Standard

Ambient operating temperature

-5 to 40° C (23 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

LEDs

System

Status

Ethernet

PoE
Speed/link/activity

SFP

Speed/link/activity
