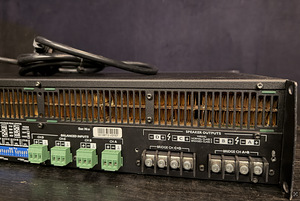

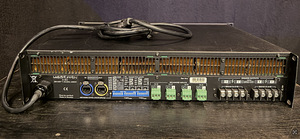

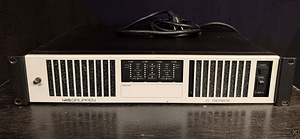

Võimendi Lab Gruppen C48:4

Võimendi Lab Gruppen C48:4

Transport - kokkuleppel.

Specification

Number of amplifier channels : 4
Peak total output all channels driven : 4800 W
Peak output voltage per channel : 141 V
Max output current per channel : 17.5 Arms

Max output power (all channels driven):
16 ohms : 625 W
8 ohms : 1000 W
4 ohms : 1200 W
2 ohms : 600 W
Hi-Z per ch. (all ch.’s driven): 70 Vrms / 100 V peak : 1100 W

Max output power bridged:
16 ohms : 2000 W
8 ohms : 2400 W
4 ohm : 1200 W
2 ohm : Not recommended
Bridged per ch.: 140 Vrms / 200 V peak : 1800 W

Performance:

THD 20 Hz – 20 kHz at 1 W : <0.1%
THD at 1 kHz and 1 dB below clipping : <0.05% Signal to Noise Ratio : >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB
Frequency response (1 W into 8 ohms) + 0 / -3 dB : 6.8 Hz – 34 kHz
Input impedance : 20 kOhm
Common Mode Rejection (CMR) : >50 dB, 20 Hz – 20 kHz
Output impedance @ 100 Hz : 30 mOhm
