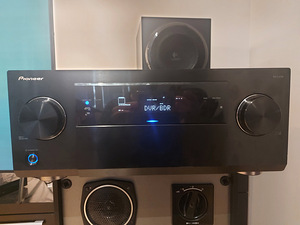

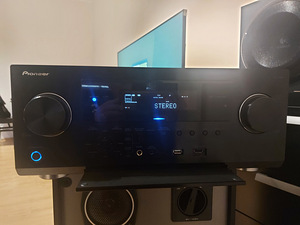

Пионер SC-LX58/Dolby Atmos/ARC

Channels: 9

Amplification Type: Class D (Direct Energy HD)

760 W Multi ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)

240 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1 ch Driven)

190 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1 ch Driven)

CONSTRUCTION DESIGN

Advanced Direct Construction

Rigid Trans-Stabilizer

Insulated Dual Chassis

AUDIO FEATURES

Dolby Atmos® Upgradable*1

Dolby® TrueHD/Dolby Digital Plus/Dolby Surround

DTS-HD Master Audio/DTS-ES/DTS Neo:X

DSD Direct Playback via USB Memory Devices (5.6 MHz, 2.8 MHz)

DSD Disc (SACD) Playback via HDMI (2.8 MHz)

Digital Core Engine with Texas Instruments AureusTM DSP

SABRE32 Ultra DAC (ES9016+ES9016) for 9.2ch

Audio Scaler 192 kHz/32-bit Enhancer

HDMITM Audio Return Channel

Pioneer MCACC Pro Room Calibration

Full Band Phase Control

Auto Phase Control Plus/Phase Control Plus

Standing Wave Control

3D Time Axis Measurement

Polarity Check

Automatic Crossover Detection

Reverb Before and After Calibration Results (AVNavigator for iPad)

Subwoofer EQ (4 Band)

Independent Dual Subwoofer Output

Pioneer Sound Enhancements

PQLS Bit-stream/Multi-Surround/2ch

Advanced Sound Retriever (Multi-ch)

Sound Retriever Link

Auto Sound Retriever/Auto Sound Retriever for ARC

Auto Level Control (Multi-Channel)

Optimum Surround (Auto Bass, Dialog, and Surround Balancing)

Virtual Speakers (Wide/Height/Surround Back)

Virtual Depth

Advanced Surround Modes

Action, Drama, Advanced Game, Sports, Classical, Rock/Pop

Front Stage Surround, Extended Stereo

Sound Retriever Air, Phones Surround

ECO Mode 1, ECO Mode 2

Input Volume Absorber

Speaker System 14 Patterns Including 3 New Patterns for Dolby Atmos

VIDEO FEATURES

HDMI 8 in/3 out (2 for MAIN, 1 for MAIN/HDZONE)

Ultra HD Upscaling and Pass-through (4K/60p/4:4:4/24-bit*2, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit*2)

Video Scaler with QdeoTM

3D Ready (Blu-ray Disc®, Broadcast and Games)

Deep Colour (36-bit) and "x.v.Colour"

Triple HD Noise Reduction

Advanced Video Adjust

Stream Smoother

Stream Smoother Link

Frame Rate Conversion

HOME NETWORK FEATURES

Apple AirPlay Certified

DLNA CertifiedTM (1.5)

HTC ConnectTM Certified

Windows® 8.1 Compatible

Music File Playback/Seek*3 via Network/USB: AIFF, Apple Lossless, WAV, FLAC, MP3, WMA, AAC, DSD

192 kHz/24-Bit Audio playback (AIFF, WAV, FLAC)

Multi-Channel (5.1ch, 5.0ch) Audio Playback*4 (WAV, FLAC)

Gapless Playback for AIFF, Apple Lossless, WAV*5, FLAC*5, AAC, MP3

Spotify® Digital Music-Streaming Service Ready*6

Internet Radio with vTuner

Play Zone Selection

CONVENIENCE FEATURES

iPod Digital Transmission via Front USB Terminal

AndroidTM Audio/Video Playback with MHLTM

Built-in AVNavigator (Wiring Navi, Interactive Operation Guide and Network Setup)

HDMI ZONE Out (HDZONE)

Charges iPod/iPhone

iControlAV5 Remote Control App Ready*7

Wireless LAN Converter Ready (AXF-7031 converter included)

Built-in Bluetooth® Wireless Technology (ver. 4.0, profile: A2DP/AVRCP, codec: SBC/AAC/aptX)

Firmware Update via Internet or USB

Graphic User Interface (GUI) with Album Artwork (HDMI only)

Auto Power Down for Each Zone

Power Save for HDMI Standby Through

AM/FM Tuner 63 Presets

Sleep Timer

Learning Remote Control (Illumination)

FRONT TERMINALS

HDMI 1 In

USB 1 in for iPod/iPhone, USB Drive

MCACC Setup Mic In

Phones 1 Out

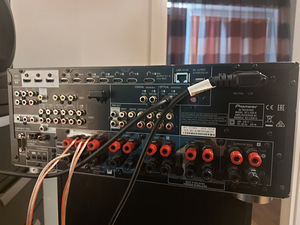

REAR TERMINALS

HDMI 7 in (7 assignable, 1 for HDMI/MHL)

HDMI 3 out (2 for MAIN, 1 for MAIN/HDZONE)

Ethernet 1 In

AV (Composite) 2 In/1 Out

Audio 1 In (assignable)

Digital Coaxial 2 In (assignable)

Digital Optical 2 In (assignable)/1 Out

Component Video 2 In (assignable)

Monitor Component 1 Out/Monitor Composite 1 Out

Preout 9.2 ch (11.2 ch terminals)

Speaker 11 ch Out

Independent Dual Subwoofer

USB Charge Port for AXF-7031 Wireless LAN Converter

IR 2 In/1 Out

12 V Trigger x 2/RS-232C

ZONE FEATURES

HDZONE HDMI for Audio and Video

ZONE 2 Audio, Subwoofer, Volume, Balance and Tone

ZONE 3 Audio, Volume and Balance

Powered ZONE 2/ZONE 3/HDZONE

Multi-ZONE Music Feature

SPECIFICATIONS

Power Requirements: AC 220-230 V, 50/60 Hz

Power Consumption: 330 W/0.1 W (Standby)

Dimensions (W x H x D): 435 x 185 x 441 mm

Weight: 15.3 kg

Pult olemas. Müün, sest otsustasin Logitech 906 kasuks
