Themo T700DIN

Themo T700DIN

Original 100%

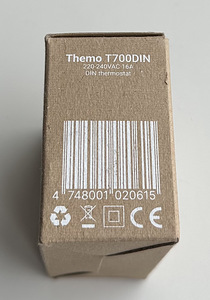

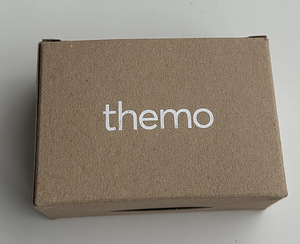

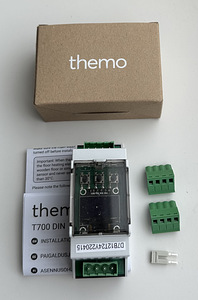

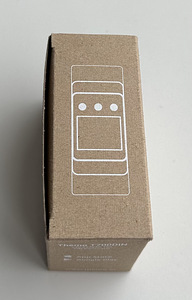

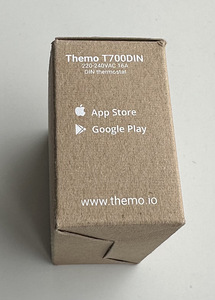

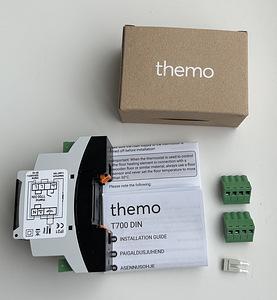

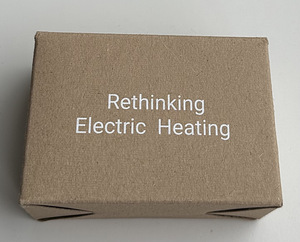

Новый в коробке , в закрытой упаковке , гарантия производителя , смотрите фото!

Без торга! на смс не отвечаю!

только из рук в руки в Tаллинне!

если объявление активно - значит в наличии!

NB! ЕСЛИ ХОТИТЕ КУПИТЬ , ЗВОНИТЕ СРАЗУ !

Themo T700DIN is a DIN rail mounted digital heating controller. It has a Wi-Fi chip that allows you to connect the device to your home network. When connected to the internet, Themo reads the real-time electricity price from Nordpool's server. Themo T700DIN control unit can be used as a floor heating thermostat or price switch for hot water heaters and SG-ready heat pumps, for example, using a tip or contactor control.

Features of the T700DIN control unit

Intelligent program - Create a detailed weekly program according to your heating needs. Themo automatically optimises your heating cycle to the most beneficial hours.

Easy set-up - Easy configuration with an online guide.

Outdoor temperatures (weather forecast)- Themo takes into account changes in outdoor temperatures when controlling your heating. The machine intelligence learns the heating needs of different

different weather conditions.

Remote control - Temperatures and heating programs can be edited from a mobile device or computer.

Multiple weekly schedules - If your weekly rhythm of life varies, you can create different heating schedules based on, for example, home and away times. You can also easily change heating programmes.

Energy consumption history - View active heating periods and their impact on your electricity bill.

Works even without internet - Turn off Wi-Fi for the night? Themo is designed to work temporarily without an internet connection. The optimisation has an offline memory of 24 hours. If no Wi-Fi is available at all, Themo will operate as a normal thermostat without optimization.

PriceSwitch - Mode where heating is controlled only by the electricity exchange price. In this mode, the temperature sensor is not used to control the heating. The user can set the operating hours and the price limit. This mode overrides the temperature related parameters.

Designed for mobile use

Themo has been developed for smartphone and tablet use. Settings are most easily managed through the Themo mobile app, available for iOS (> version 12.4) and Android (> version 7.0). The app is free. The Themo web app (app.themo.io), which is designed for computer use, shows a detailed report of the heating history and an estimate of the savings achieved.

The DIN-rail mounted Themo thermostat can be connected to both 230V and 24V systems (top data). The wiring diagram shows the wiring connections. When controlling underfloor heating, the connection of a floor sensor is mandatory for the thermostat to work correctly.

Technical data

Sensors - temperature sensor on (mandatory for floor heating; optional for PriceSwitch)

Supply voltage 220-240V or 24V , 50 Hz

Connection clamps Use 1.5 mm or 2.5 mm cables depending on power requirements.

Temperature limits The maximum temperature for underfloor heating is 45°C

Supported floor sensors

NTC 6,8 kOhm @

25°C NTC 10 kOhm @

25°C NTC 12 kOhm @

25°C NTC 15 kOhm @

25°C NTC 33 kOhm @

25°C NTC 47 kOhm @

Weight 150g

Buttons 1x mode, 1x value down, 1x value up

Warranty 2 years

Languages English, Estonian, Finnish

Material and IP rating ABS + PC plastic/ white, glossy IP21

Internet connection WiFi 802.11 b/g/n 2.4GHZ-2.5GHZ

Remote control requirements

Wi-Fi connection with internet access

Themo app for phone or tablet with iOS or Android

Free Themo account

EU Declaration of Conformity

The product complies with the provisions of the following EC Directives, including all amendments, and the national legislation implementing these Directives: Low Voltage Directive 2014/35/EC, EMC Directive 2014/35/EC.
